Improvements

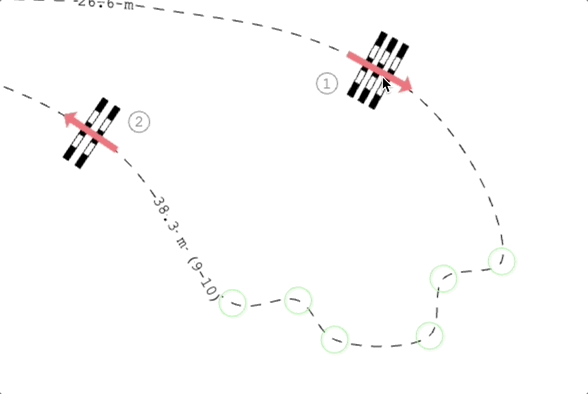

Smoothing the course

Added commands to smooth the course after the selected obstacle (default keyboard shortcut H) and smooth the whole course (default keyboard shortcut Shift-H).

Smoothing the course attempts to eliminate or move the points on the course so it has less irregular and abrupt turns, while preserving the course shape.

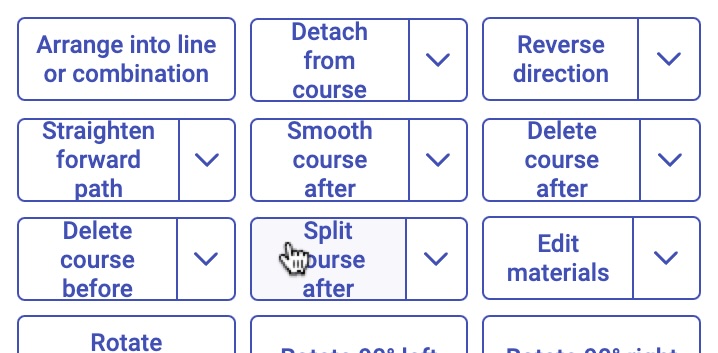

Unified behaviour of commands and buttons operating on obstacles on the course

For obstacles that are part of the course, the following commands were unified to have the same look and feel:

• Detach from course
• Reverse direction
• Straighten forward path
• Smooth course after
• Delete course after
• Delete course before
• Split course after

When the main button or menu command is pressed, these commands will operate on the last round for the selected obstacles. This should match the most popular way the designs are created – round by round. For a few commands, this will be different to how they operated previously, for example detaching from the course used to detach the obstacle from all rounds. Now you would need to use the command a few times in a row to detach the obstacle from the course round by round or choose a submenu option (see the next paragraph).

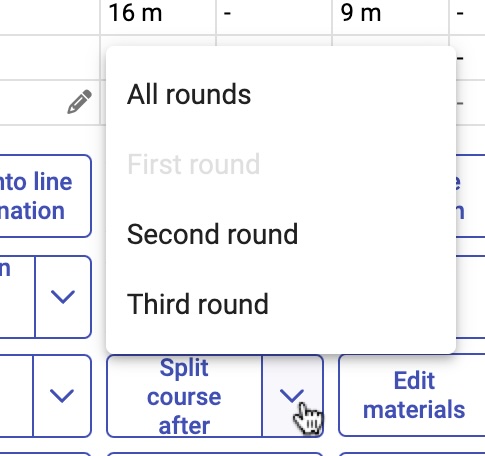

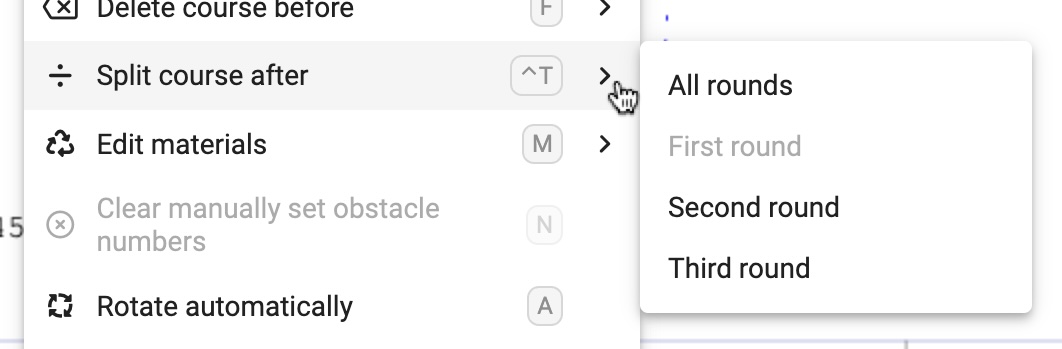

Each of the buttons and menu commands have a sub-menu that can be opened to select a specific round on which to execute the command.

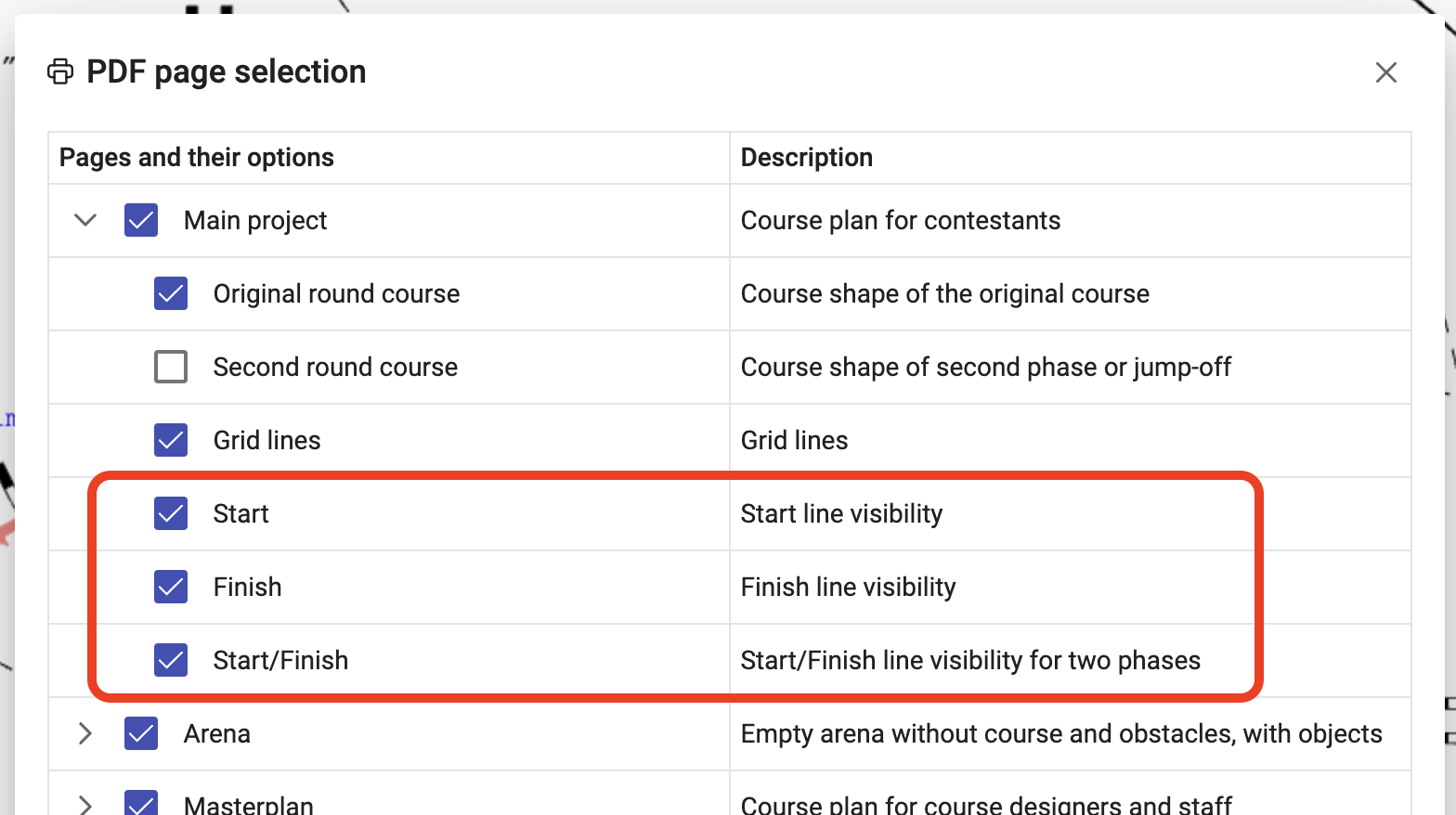

Disabling Start, Finish and Finish/Start lines on the plan in PDF

An option was added to remove the lines and photocells of Start, Finish or Finish/Start from the plan before printing or saving to PDF.

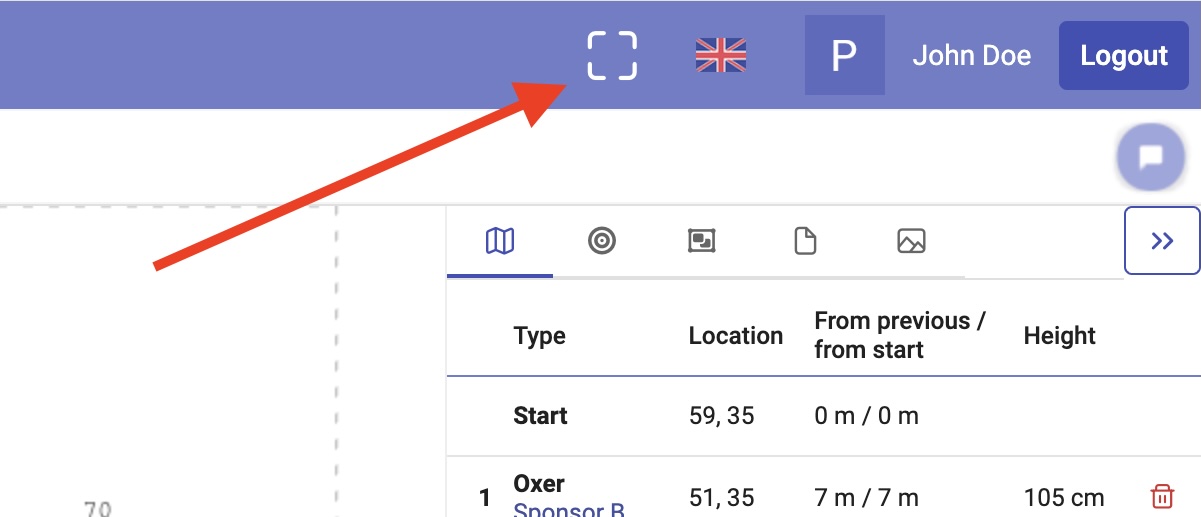

A button to go fullscreen

A button was added to enter/exit fullscreen.

Fixes

• Fixed a problem with stride calculations where if all strides in a distance were at the maximum possible length, there was an incorrect warning that they could not fit the distance.
• Fixed a problem where changing competition or display parameters was resetting the competition table.
• Fixed a problem where changing competition or display parameters was disabling the layout lines.
